Beginner’s guide · Make & build
Probe one battery toy,
and make every successful bend reversible.

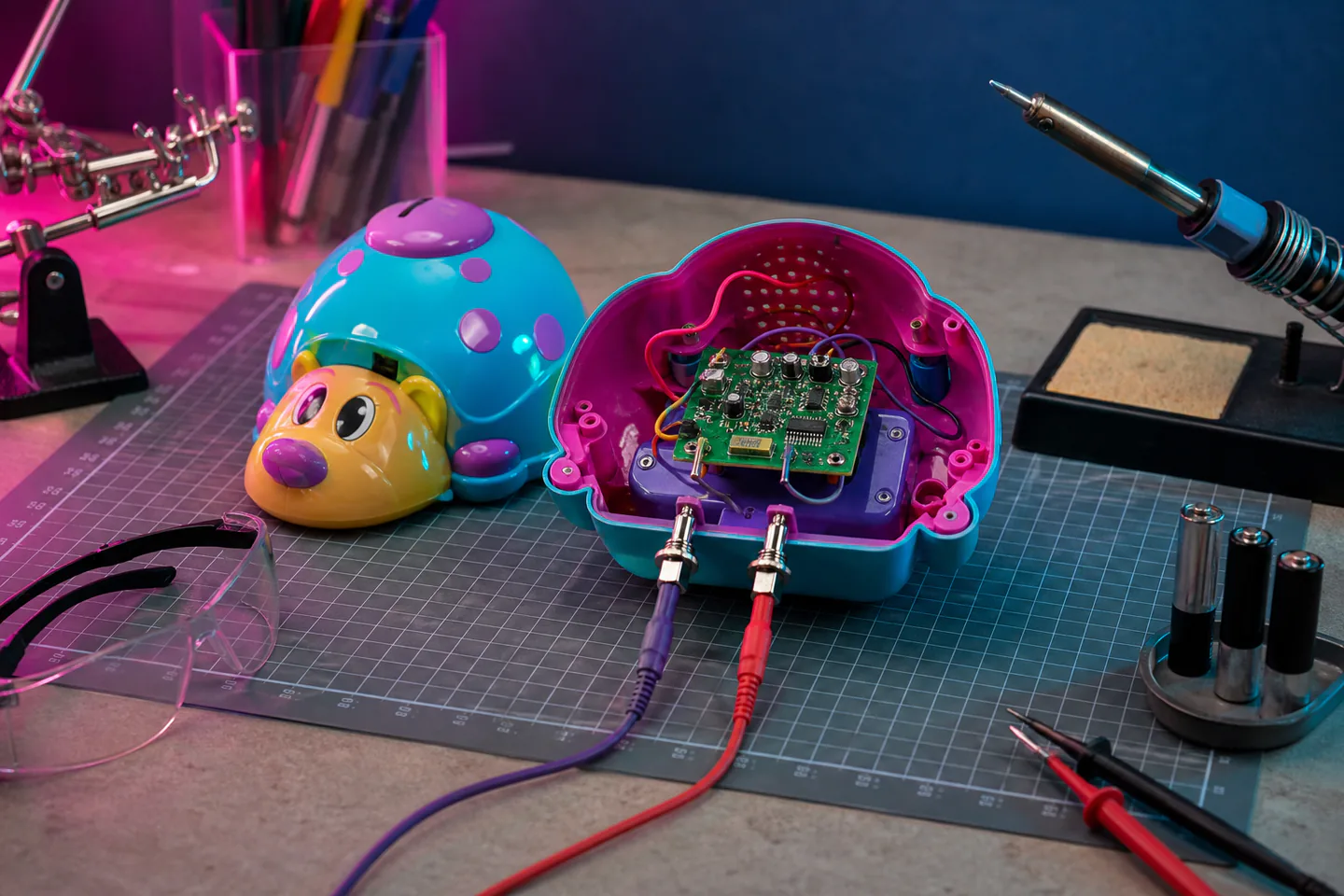

A cheap low-voltage sound toy, insulated clip leads and careful notes can reveal new sounds without touching mains-powered or rechargeable hardware.
Quick answer
Complete one reversible sound bend before expanding the setup
Choose an inexpensive sound toy powered only by AA or AAA cells with no charging socket, mains lead, motor power stage or sentimental value. Photograph the closed toy, remove batteries, open it, photograph both board sides and mark the speaker, battery and obvious power area. Refit batteries only for short insulated clip-lead tests away from the power rails, record every point pair and sound, stop at heat or resets, then remove power and add one momentary switch only after the bend repeats reliably.
- 01
Circuit bending is exploratory short-circuiting, so component failure is possible even on a suitable toy. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
- 02
The beginner boundary is low-voltage disposable-cell equipment only; plugs, chargers and lithium packs stay closed. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
- 03
Photographs and numbered probe points turn chance sounds into repeatable evidence. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
- 04
A reversible clip-lead discovery should work repeatedly before drilling the case or soldering a switch. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
What to expect
What circuit bending is really like at the start
The useful beginner controls are preparation, one bounded task and a record of the result; specialist equipment matters only when it solves a repeated limitation.
Toy
Some boards expose interesting digital timing points, while others offer nothing useful and fail quickly. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
Probe
One connection may freeze, reset, distort or silence the toy depending on the sound being played. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
Body
Finger contact can add capacitance and change a bend, but that does not make unknown-voltage probing acceptable. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
Output
A loud toy speaker or added jack can overload the circuit or connected recording equipment. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
Core method
The core circuit bending method
Select the safe candidate
Reject anything mains-powered, rechargeable, lithium-powered, damaged, wet, valuable or connected to external equipment. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
Map before power
Remove cells, open the case, photograph wires and screws and number accessible low-voltage test points. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
Probe briefly and log
Use insulated clip leads for short connections, note the active sound and stop at heat, smell, resets or battery distress. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
Make one controlled modification
Disconnect power, fit a momentary switch with strain relief and insulation and retest before closing the case. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
Useful products
Products with a clear job in the route
The meter supports known low-voltage checks, the iron enables one proven switch connection and the matching stand controls the hot tool between joints.
AstroAI TRMS 6000-Count Digital Multimeter
It turns wiring and power faults into separate testable questions.
Antex XS25 25 W Soldering Iron
It is suitable for short supervised electronics tasks when paired with a stable stand and extraction.
Antex ST4 Soldering Iron Stand
The stand removes the temptation to balance a hot iron on the bench.
First project
Add one momentary glitch switch to an AA sound toy
Keep the discovery reversible until the same point pair produces a useful sound several times.
- 01
Reject unsafe candidates
Use only a disposable-cell sound toy without a plug, charger, lithium pack or high-current motor. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
- 02
Document the untouched toy
Photograph assembly, screws, wires, speaker and both board sides with batteries removed. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
- 03
Probe short connections
Reinstall cells for brief insulated tests, avoid power rails and log numbered point pairs. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
- 04
Repeat the chosen bend
Confirm the sound across several power cycles and stop if any component or cell warms. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
- 05
Install one switch
Remove cells, solder with extraction, insulate and strain-relieve the wires and test before closing. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
What can wait
What can wait until the first result
Delay anything that adds cost, risk or another variable before the basic workflow has produced something you can review.
- 01
Mains keyboards and appliances
Stored or live hazardous voltage can injure or kill. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
- 02
Rechargeable lithium toys
Shorts and charging modifications can create severe fire risk. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
- 03
Output-jack modifications
Levels, grounds and connected equipment need a defined interface. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
- 04
Large banks of switches
One documented reliable bend teaches more than an unserviceable panel. Record what happened during circuit bending so the next attempt changes one known variable instead of several guesses.
Upgrade path
Add the capability you can now name
Each stage should remove a demonstrated constraint rather than make the setup look more advanced.
Use what you own
£0–£20Existing equipment and one written plan
Probe one disposable-cell sound toy reversibly.Repeat the first route
About £20–£70 plus a used toyA complete repeatable starter setup
Install one labelled momentary switch.Add one capability
Often £50–£250One selected tool, service or learning resource
Add a reset control, potentiometer or protected audio interface from a tested design.Build specialist depth
Club, course or specialist dependentA documented specialist workflow
Develop performance instruments with schematics, strain relief and competent electrical review.Safety & care
Low voltage is a boundary, not permission to short anything
The candidate device, battery chemistry, test duration and connected equipment all affect risk.
- Never open or bend equipment with a mains plug, power adapter, charging socket, lithium battery or unknown power section.
- Remove batteries before opening, soldering, drilling or moving wires and refit them only for controlled tests.
- Stop immediately at heat, swelling, leakage, smell, smoke or repeated hard resets and isolate the batteries safely.
- Use insulated clips, eye protection, fume extraction and a stable soldering-iron stand.
- Keep modified toys away from children and label them as experimental devices rather than safe toys.
Outside help
When outside help earns its place
A supervised maker or experimental-music workshop is useful for safe device selection, solder extraction and audio interfacing.
Confirm that candidates are restricted to low-voltage disposable-cell sound toys and that no mains equipment is opened.
Use outside help after the first circuit bending attempt can reveal the exact technique, access or safety problem that needs live correction.
Representative UK learning and access routes checked 1 September 2026; local prices, permissions, equipment and tutor support vary.
Sources
Where the guidance came from
Authoritative and specialist guidance supports the method and safety boundaries; community discussion contributes recurring beginner problems rather than unsupported claims.
-
01
MAKE · Circuit-Bending: Build an Incantor
Reed Ghazala’s battery-powered exploratory method and safety boundary.
Open source -
02
T.A.C.O. Team · Circuit bending and toy hacking
Educational battery-toy workshop method and documentation.
Open source -
03
STEM Clubs · Sounds Amazing booklet
Battery-only candidate and supervised probing guidance.
Open source -
04
fizzPOP · Circuit bending for beginners
UK maker experience and low-voltage boundary.
Open source -
05
HSE · Electronics soldering
Flux-fume hazards and extraction control.
Open source -
06
Reddit · r/CircuitBending
Community evidence on bend selection, resets, switches and damaged devices.
Open source -
07
Amazon UK · TRMS 6000-Count Digital Multimeter
Exact Amazon UK product page or ISBN used for this recommendation; current price, seller, specification and availability should be confirmed.
Open source -
08
Amazon UK · XS25 25 W Soldering Iron
Exact Amazon UK product page or ISBN used for this recommendation; current price, seller, specification and availability should be confirmed.
Open source -
09
Amazon UK · ST4 Soldering Iron Stand
Exact Amazon UK product page or ISBN used for this recommendation; current price, seller, specification and availability should be confirmed.
Open source
Guide information and links checked 1 September 2026.
